Enhancing Home Lighting Circuit Wiring with Terminal Blocks

When upgrading or renovating home lighting circuits—especially in common areas like the living room, master bedroom, secondary bedroom, and study—using terminal blocks can significantly improve both wiring clarity and maintenance efficiency. Instead of the traditional wire-twisting method, terminal blocks offer a safer, neater, and more professional solution for wire transfer and connection.

Why Use Terminal Blocks in Lighting Circuits?

Terminal blocks allow for organized and secure connections between the main power lines and the lighting control circuits of each room. Their compact size and structured design make them ideal for low-current circuits, such as residential lighting.

For example, a 4-position terminal block can effectively manage the lighting circuits of four separate rooms. Here's how:

1.Main wires: Use 2.5 mm² copper-core wires to carry power from the lighting circuit breaker.

2.Lighting control wires: Use 1.5 mm² copper-core wires to connect individual switches and lamp holders.

Step-by-Step Wiring Guide

1. Planning in the Distribution Box

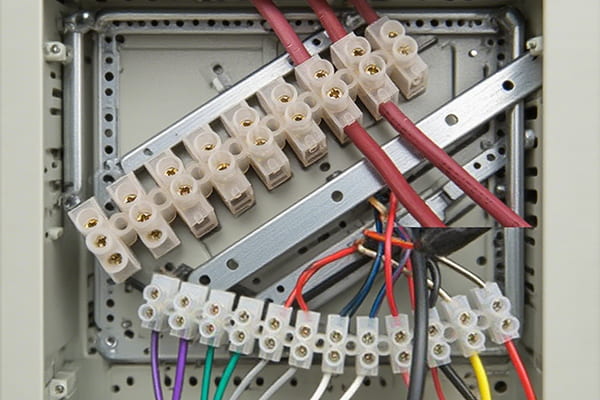

Install a small-capacity circuit breaker (e.g., 6A) in the distribution box for lighting. Choose a suitable mounting location for the terminal block inside the box—either on a spare DIN rail or a fixed spot. Secure the block with a screwdriver.

2. Connecting the Main Power Wires

     From the lighting circuit breaker, draw a 2.5 mm² live wire.

     Strip about 8mm of insulation and insert it into the left hole of the first position on the terminal block. Tighten the screw to secure.

     Then, take a neutral wire from the neutral bar, insert it into the right hole of the same position, and secure it as well.

3. Branch Wiring for Each Room

     Living Room: Connect a 1.5 mm² live wire to the left hole of position 2 and run it to the light switch input. Connect the switch          output to the lamp holder’s live terminal. Complete the circuit by wiring the neutral terminal of the lamp holder to the right hole of position 2.

     Master Bedroom: Repeat the same process using position 3 of the terminal block.

     Secondary Bedroom and Study: Use position 4 to connect the respective circuits for each room.

4. Final Testing and Cable Management

Once all connections are completed:

      Turn on the lighting circuit breaker.

      Test each switch to ensure the lights operate properly.

      Cover any unused terminal holes with insulating tape for safety.

      Tidy up the internal wiring to maintain a professional, clutter-free distribution box.

Benefits of Using Terminal Blocks in Home Lighting

1. Easier Maintenance

If a light fails in the future, you can isolate and test individual branches at the terminal block using a multimeter. This makes it easier to identify whether the fault lies in the wire, switch, or light fixture—far more efficient than troubleshooting twisted wire joints.

2. Standardized, Safe Wiring

Terminal blocks offer clear separation of live and neutral branches, helping electricians and homeowners easily trace each circuit. This structured approach aligns with electrical safety standards, minimizing risks such as loose connections, sparks, or short circuits caused by poor insulation or wire overlap.

In modern residential wiring, terminal blocks offer a clean, safe, and efficient solution for lighting circuits. Whether you're a professional installer or a DIY enthusiast, incorporating terminal blocks into your home’s lighting system not only enhances safety and ease of use but also ensures future maintenance is a straightforward task. With just a few tools and the right terminal block, you can upgrade your home’s electrical infrastructure with confidence.
