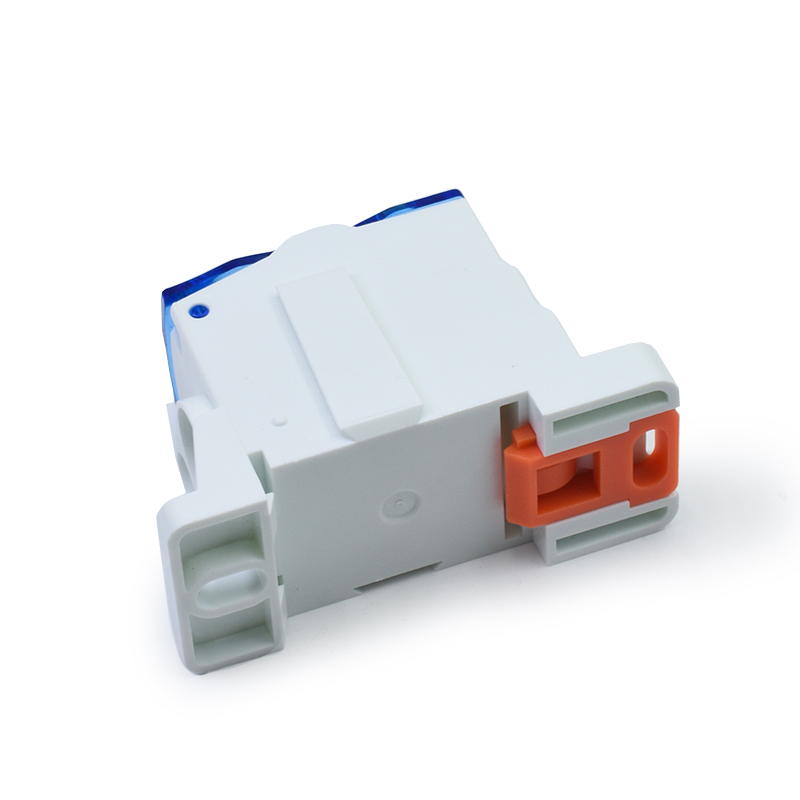

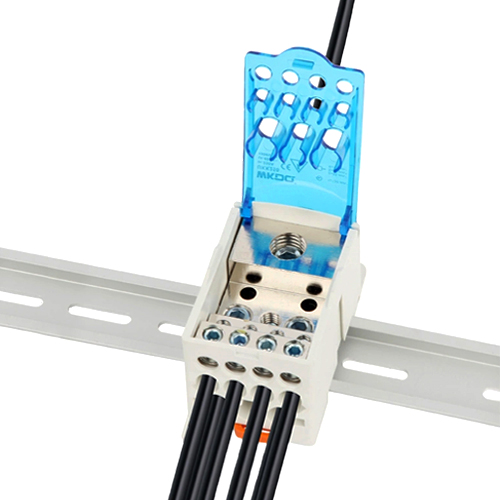

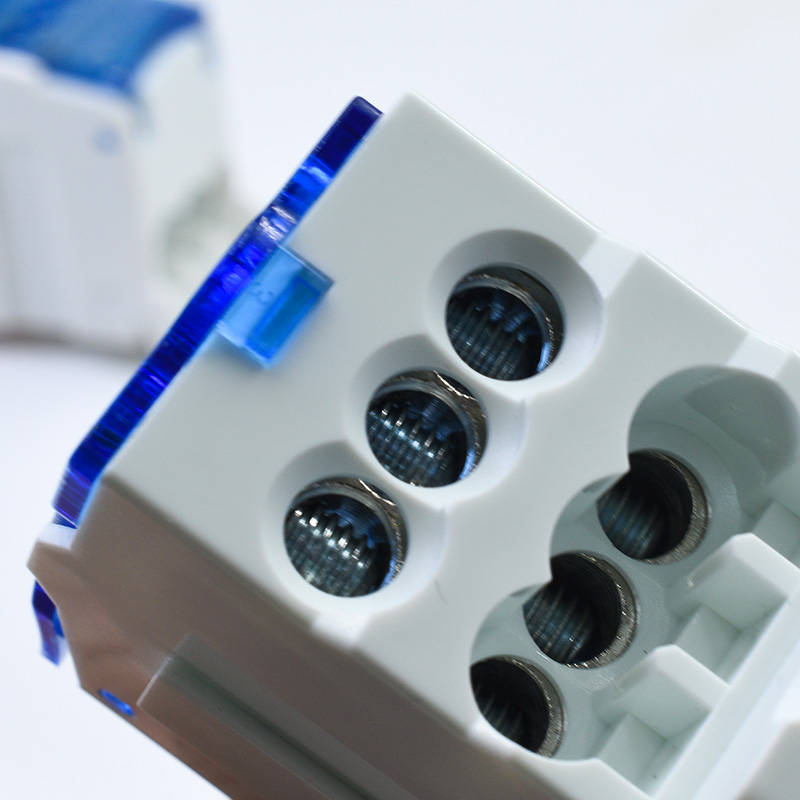

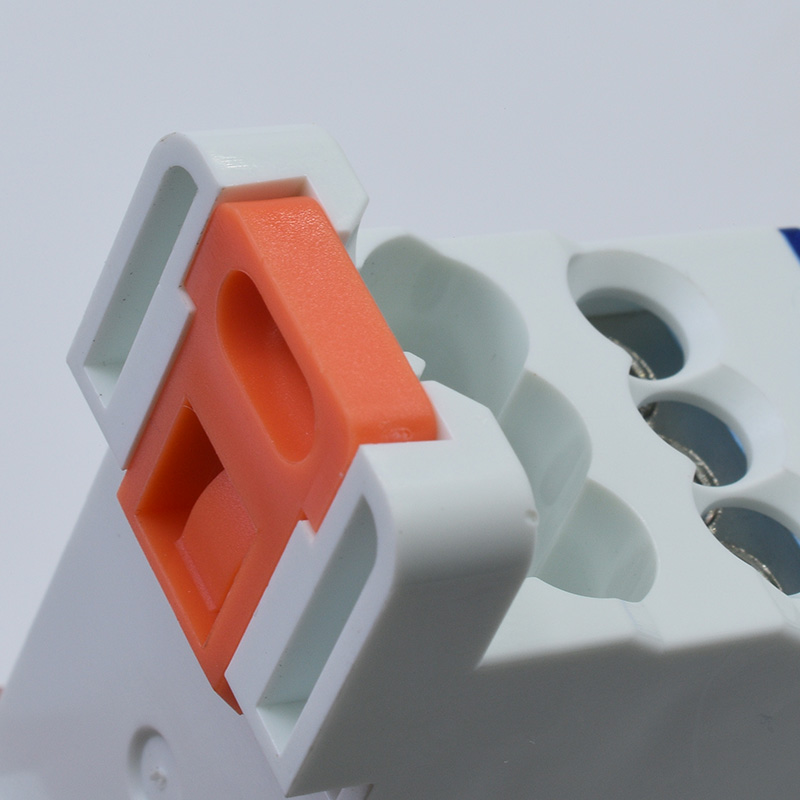

The Din Rail Terminal Block Wire Box applications where high voltage distribution is required, the Power Screw Terminal with Cover Junction Boxs are ideal for high power distribution is smaller spaces. All products mount on a standard 35mm Din Rail, terminals are solid copper and screws are stainless steel.
|
ItemNo |
MJTB037 |
|
Contact Material |
Brass,Nickle Plated |
|
Termination Method |
Screw Down |
|
Housing |
PC,PL |
|
Material |
Polyamide Housing |
|
Inserts |
Brass |
|
Screws |
Steel,Nickle Plated |
Advantages of Ukk Series Din Rail Distribution Box Block
1.Material:Typically made from high-quality plastic, often polycarbonate (PC) or acrylonitrile butadiene styrene (ABS), which offers good mechanical strength and electrical insulation.
2.DIN Rail Compatibility:Designed to be mounted on standard DIN rails (typically 35mm wide), making it compatible with a wide range of industrial and commercial electrical installations.
3.Size and Dimensions:Available in various sizes to accommodate different numbers of components. Sizes often range from small enclosures for a few terminal blocks to larger enclosures that can house multiple circuit breakers, relays, and other devices.
4.Protection Rating:Commonly rated IP20 or higher, offering protection against solid objects and touch, with some models available in higher IP ratings for dust and water resistance in harsher environments.
Ukk Series Din Rail Distribution Box Block General Specifications
| ItemNo. | Current | Voltage | Input | Output | Installation | Dimension |
| MJTB037/UKK | 80A | 690 VIEC | 6-16mm² x 1 | 2.5-6mm² x 4 , 2.5-16mm² x 2 | Din Rail | 28 x 65 x 48 mm |
| 125A | 690 VIEC | 10-35mm² x 1 | 2.5-16mm² x 7 | Din Rail | 28 x 74 x 48 mm | |
| 160A | 690 VIEC | 10-70mm² x 1 | 2.5-16mm² x 7 | Din Rail | 28 x 74 x 48 mm | |
| 250A | 690 VIEC | 35-120mm² x 1 | 6-35mm² x 2 , 2.5-10mm² x 4 , 2.5-16mm² x 5 | Din Rail / Screw | 47 x 95 x 50 mm | |
| 400A | 690 VIEC | 95-185mm² x 1 | 6-35mm² x 2 , 2.5-10mm² x 4 , 2.5-16mm² x 5 | Din Rail / Screw | 47 x 95 x 50 mm | |
| 500A | 690 VIEC | 4 x 15.5 x 0.8 - 8 x 24mm² x 1 | 6-35mm² x 2 , 2.5-10mm² x 4 , 2.5-16mm² x 5 | Din Rail / Screw | 47 x 95 x 50 mm |
Din Rail Distribution Box Block commonly used in electrical distribution systems to house terminal blocks, circuit breakers, and other protective devices, ensuring safe and reliable power distribution.
Equipotential Bonding with Metal Stand Lock Bar Terminal Block is an advanced electrical connection device engineered to maintain equal potential across connected electrical equipment and systems. This innovative bus bar prevents electrical failures and hazards due to potential differences, ensuring safety and reliability in various electrical systems. It plays a crucial role in mitigating risks associated with lightning strikes, static electricity, and other potential electrical hazards, while optimizing current distribution and enhancing system stability. ItemNo MJTB034 Contact Material Brass Termination Method Screw Down Working Temperature -40℃ - 110℃ Material Polyamide Housing Inserts Brass Screws Steel,Zinc plated
Details
Equipotential Plate with Lid Bonding Bar Terminal Block is a critical component designed to ensure safe and efficient equipotential bonding in electrical systems. This terminal block helps equalize electrical potential across different conductive parts, reducing the risk of electric shock and improving overall system safety. ItemNo MJTB034 Contact Material Brass Termination Method Screw Down Working Temperature -40℃ - 110℃ Material Polyamide Housing Inserts Brass Screws Steel,Zinc plated
Details
Distributor Busbar Intersystem Bonding Termination Block is mounted adjacent to the meter base or service entrance equipment and a convenient way to interconnect and terminate grounding conductors from telephone, CATV or radio and television antennas. it includes corrosion-resistant, stainless steel mounting hardware and is easily accessible for connection and inspection. The polymeric base and housing is impactresistant, UV-stabilized.Connects to grounding electrode conductor – does not rely on meter base enclosure bonding connection. ItemNo MJTB034 Contact Material Brass Termination Method Screw Down Working Temperature -40℃ - 110℃ Material Polyamide Housing Inserts Brass Screws Steel,Zinc plated
Details
The PCT compact splicing connector is designed for fast and reliable wiring solutions. Made from premium PA6 insulating material, it ensures long-term durability with resistance to high temperatures, corrosion, and aging. Ideal for both professionals and DIY users, this connector replaces traditional methods, simplifying wiring with a safe and secure connection.it accommodates various applications like ceiling fans, switches, and automotive wiring.
Details
Pluggable Wire Connectors Terminal Strips Constructed from materials PA6,these terminal strips deliver exceptional durability and performance. the terminal strips can be easily cut to the desired size or provided pre-cut to length upon request. Featuring captive terminal screws and middle barrier inserts, these terminal strips guarantee secure and efficient connections. ItemNo MJTB011-10 Contact Material Brass Termination Method Screw Down Glow Wire Test 850 ℃ Material Polyamide6 Number of Ways 12 Inserts Brass Housing Polyamide6(PA6) Screws Steel,Zinc plated
Details
DIN Rail-Mounted Busbar Terminal Block is designed for efficient and organized electrical connections in various industrial and commercial applications. Its robust construction and secure mounting system ensure reliable performance and ease of installation. ItemNo MJTB032 Contact Material Brass Termination Method Screw Down Material Polyamide66 Housing Inserts Brass Housing Polyamide66 (PA66) Screws Steel,Zinc plated
Details
Earthing Terminal With 1 or 2 Square Holders Brass Bar are crafted from durable brass material, ensuring longevity and robustness,this earthing terminalBrass bar helps to tidy up messy wiring and streamline electrical setups. ItemNo MJTB029 Contact Material Brass Termination Method Screw Down Square Holders 1,2 Screws Steel,Zinc plated
Details
Manufactured and tested according the standard, T Side Wire Connector 12 Way Terminal Strip is designed for efficient and reliable electrical connections, adhering to the standards of safety and performance. ItemNo MJTB009-01-03 Contact Material Brass Termination Method Screw Down Glow Wire Test 850℃ Material Polyamide66 Housing Number of Ways 12 Inserts Brass Housing Polyamide66 (PA66) Screws Steel,Zinc plated
Details
