Home Unipolar Terminal Block

8 Poles Unipolar Terminal Blocks PA66

8 Poles Unipolar Terminal Blocks PA66

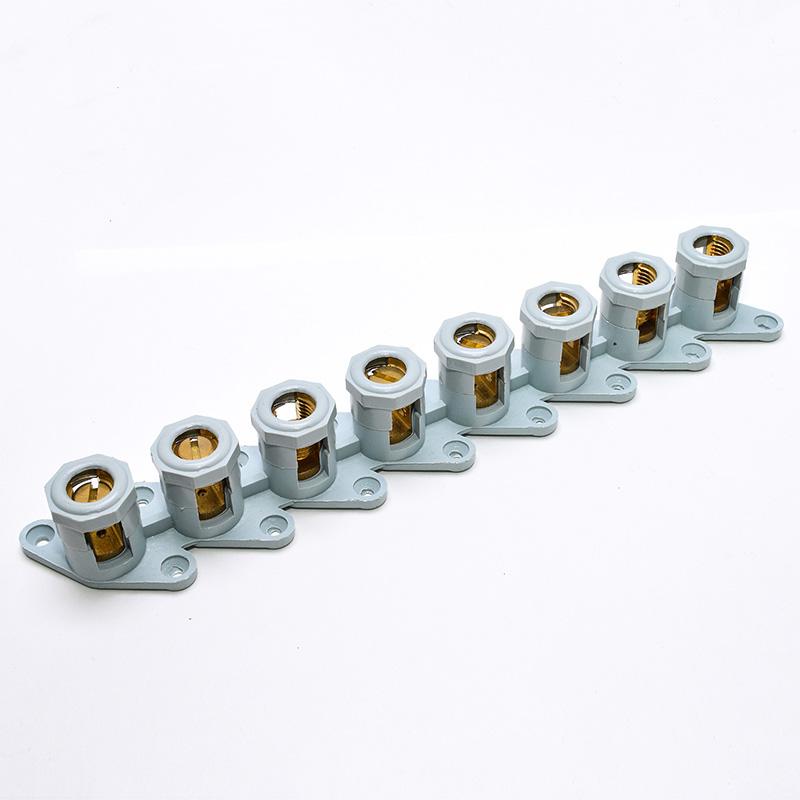

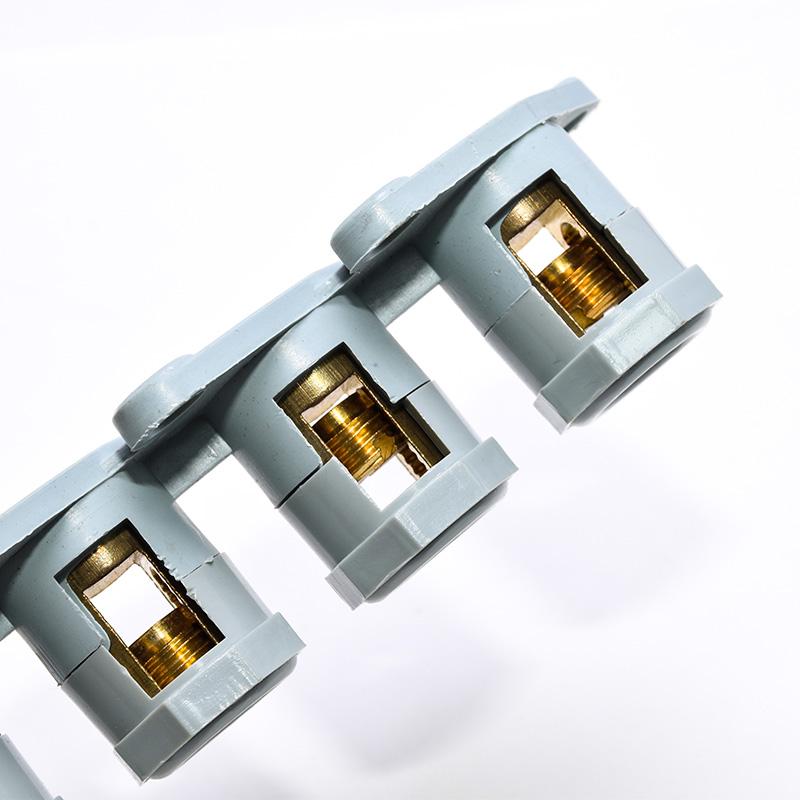

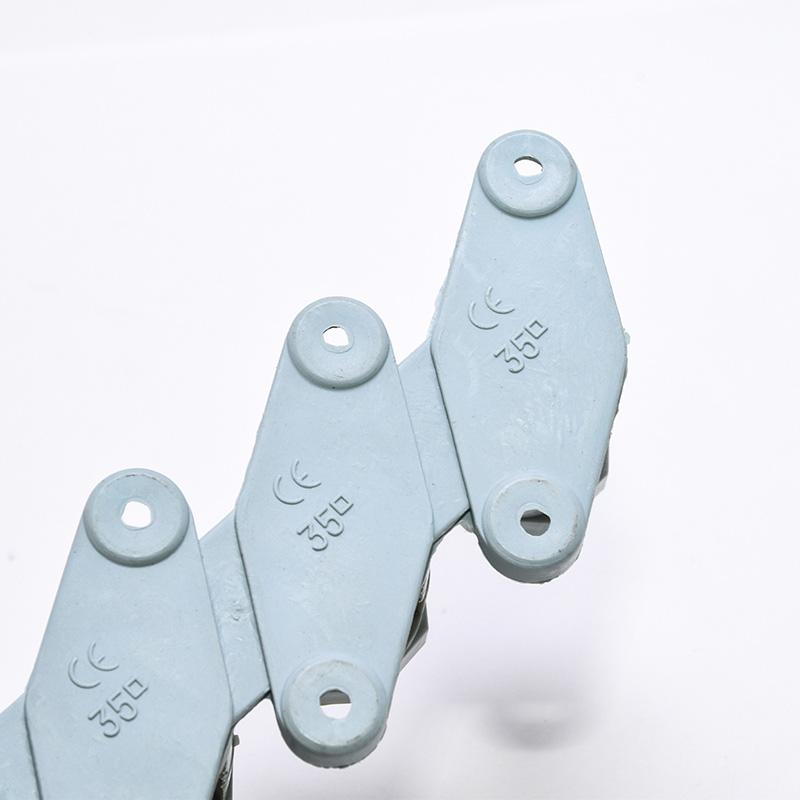

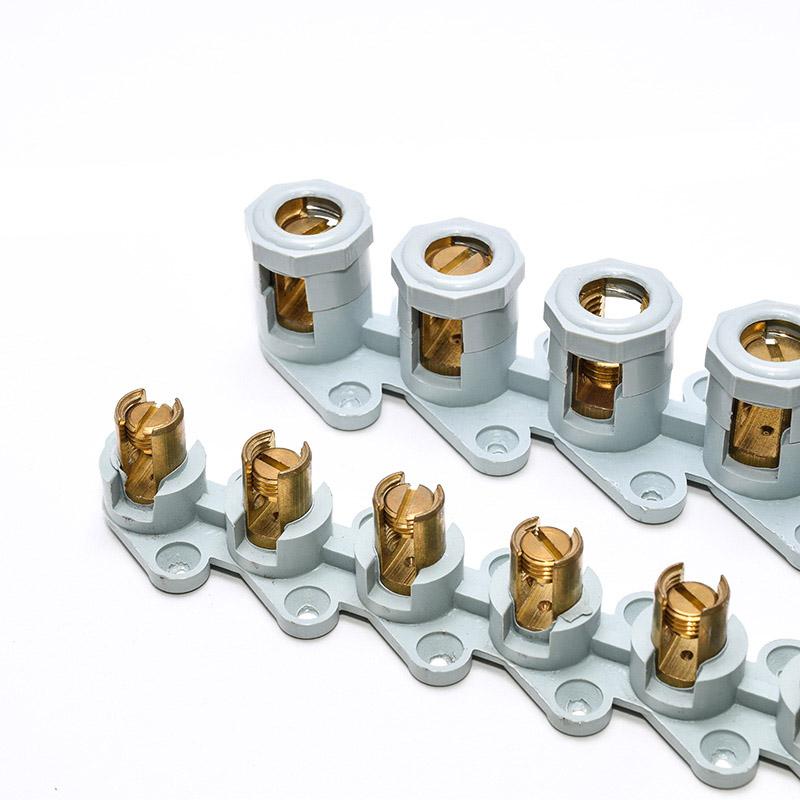

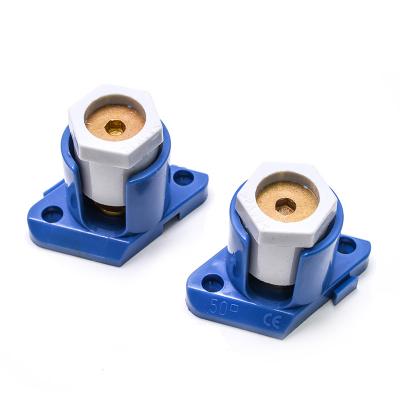

8 Pole Unipolar Terminal Block Made with high-quality polyamide66 materials, it features good insulation and fire- resistance,heat-resistance making it ideal for various industrial and ensures secure and efficient connections.



 ItemNo

 MJTB012-01-05

 Contact Material

 Brass

 Termination Method

 Screw Down

 Working Temperature

 -30℃ - 110℃

 Material

 Polyamide66

 Inserts

 Brass

 Housing

 Polyamide66(PA66)

 Screws

 Brass



Advantages of 8 Poles Unipolar Terminal Blocks PA66



1.Durable Construction: Made with premium materials for long-lasting performance and durability.

2.High Electrical Performance:providing stable and secure connections.

3.8 Poles: Offers 8 connection points, allowing for multiple wiring configurations.

4.Screw Terminals: Equipped with screw terminals for easy and reliable wire connections.

  • #8 Poles Unipolar Terminal Blocks PA66

  • # Unipolar Terminal Blocks PA66

  • #8 Poles  Terminal Blocks PA66


8 Poles Unipolar Terminal Blocks PA66 General Specifications

8x1 Terminal Block

ItemNo. WireRange Volt Blocks L W H E Ø Screw Size PCS/CTN
mm
MJTB012-01 16mm2 450V 8 173 26.4 24 21 5 M8.0 200
MJTB012-02 25mm² 450V 8 206 31 27.5 25 9 M9.0 100
MJTB012-03 35mm² 450V 8 250 41.5 33 30 8 M12.0 80
MJTB012-04 50mm² 450V 8 260 41.5 35.5 31.5 8.5 M14.0 50
MJTB012-05 70mm² 450V 8 272 42 38 33 9 M14.0 50





Application of 8 Poles Unipolar Terminal Blocks PA66

8 Poles Unipolar Terminal Blocks PA66 suitable forResidential Wiring,Appliance ConnectionsCommercial and Office Buildings,Lighting Systems,Electrical Panels,Automotive and Marine,Marine Electrical Systems,Solar Power Installations,Wind Turbines,Maintenance and Repairs.



Send A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products

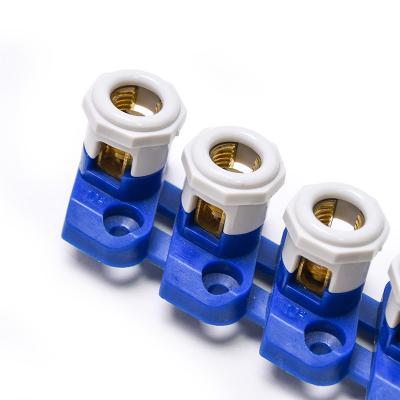

Connector Unipolar Terminal Blocks PA66

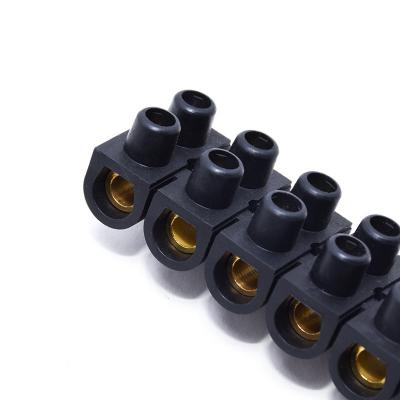

10 Poles Connector Unipolar Terminal Blocks

10 Poles Connector Unipolar Terminal Blocks  Constructed from premium polyamide66 materials, offers superior insulation, fire resistance, and heat resistance. These qualities make it an ideal choice for various industrial applications, ensuring secure and efficient electrical connections.    ItemNo  MJTB012-20-24  Contact Material  Brass  Termination Method  Screw Down  Working Temperature  -30℃ - 110℃  Material  Polyamide66  Inserts  Brass  Housing  Polyamide66(PA66)  Screws  Brass

Details
Connectors Terminal Thread Strips
Junction Connectors Terminal Thread Block

Junction Connectors Terminal Thread Block are designed for connecting one or multiple conductors without cutting the main cable. These terminal strips feature an outer shell made of PA66, known for its durability and insulation properties. The conductors and screws are made of brass, with the screws brass-plated to enhance corrosion resistance and conductivity.    ItemNo  MJTB026  Contact Material  Brass  Termination Method  Screw Down  Working Temperature  -40℃ - 110℃  Material  Polyamide66  Inserts  Brass  Housing  Polyamide66(PA66)  Screws  Brass,Brass Plated

Details
Electrical Junction Connector
Electrical Junction Connector Terminal Thread Strips

Electrical Junction Connector Terminal Thread Strips are engineered to connect one or multiple conductors without the need to cut the main cable. These strips boast an outer shell crafted from PA66, recognized for its exceptional durability and insulation qualities. Both the conductors and screws are constructed from brass, with the screws featuring brass plating to improve corrosion resistance and conductivity.    ItemNo  MJTB027  Contact Material  Brass  Termination Method  Screw Down  Working Temperature  -40℃ - 110℃  Material  Polyamide66  Inserts  Brass  Housing  Polyamide66(PA66)  Screws  Brass,Brass Plated

Details
Terminal Strip With Wire Protector
Screw Terminal Strip With Wire Protector

The difference between this Terminal Strip and Dul Row Terminal Strip Connector is that the PA Terminal Strip With Wire Protector have CE,VDE,ROHS,REACH Certifications.It is also designed for industrial applications, especially where enhanced connection durability and increased resistance to weather conditions are essential.    ItemNo  MJTBV-01-05  Contact Material  Brass  Termination Method  Screw Down  Glow Wire Test  850 ℃  Ambient Temperature  T110℃  Number of Ways  12  Inserts  Brass  Housing  Polyamide6 (PA6)  Screws  Steel,Zinc plated

Details
France Type Circuit Breakers
T Accessory France Type Terminal Circuit Breakers

T Accessory France Type Terminal Circuit Breakers are high-performance electrical protection devices designed to cater to a wide range of project requirements.  offer reliable and efficient protection with a comprehensive array of features and specifications.     ItemNo  MJTB020  Contact Material Nickle Plated Brass Conductor  Termination Method  Screw Down  Glow Wire Test  850℃  Material  Polyamide66 Housing  Screws  Steel,Zinc plated

Details

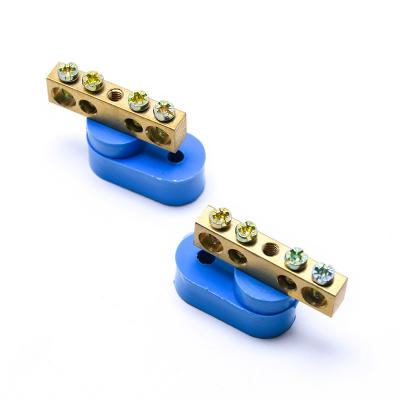

Brass Bar Round Holders
