Junction Connectors Terminal Thread Block

Junction Connectors Terminal Thread Block

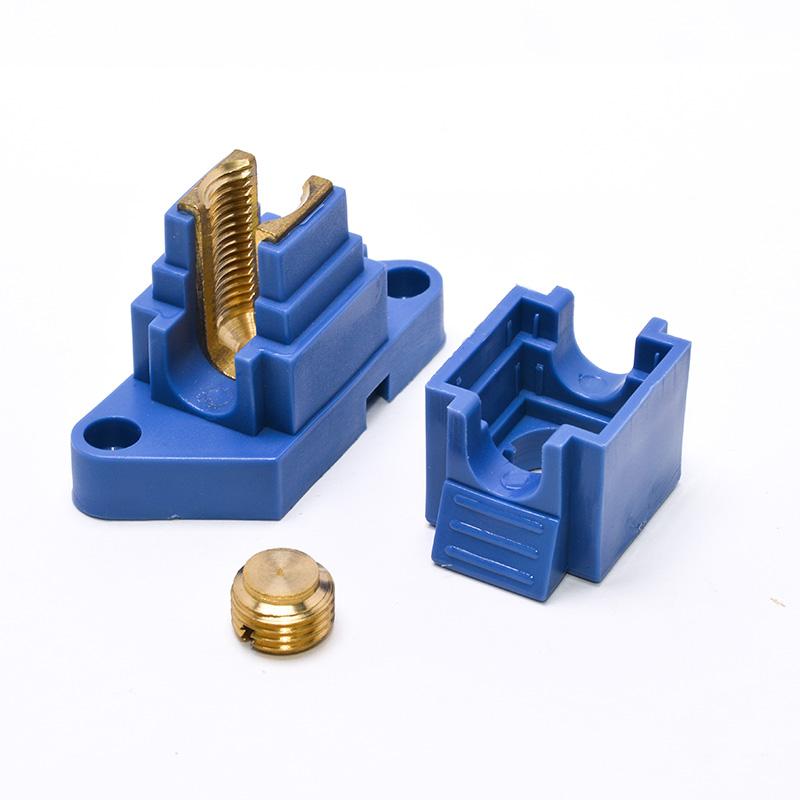

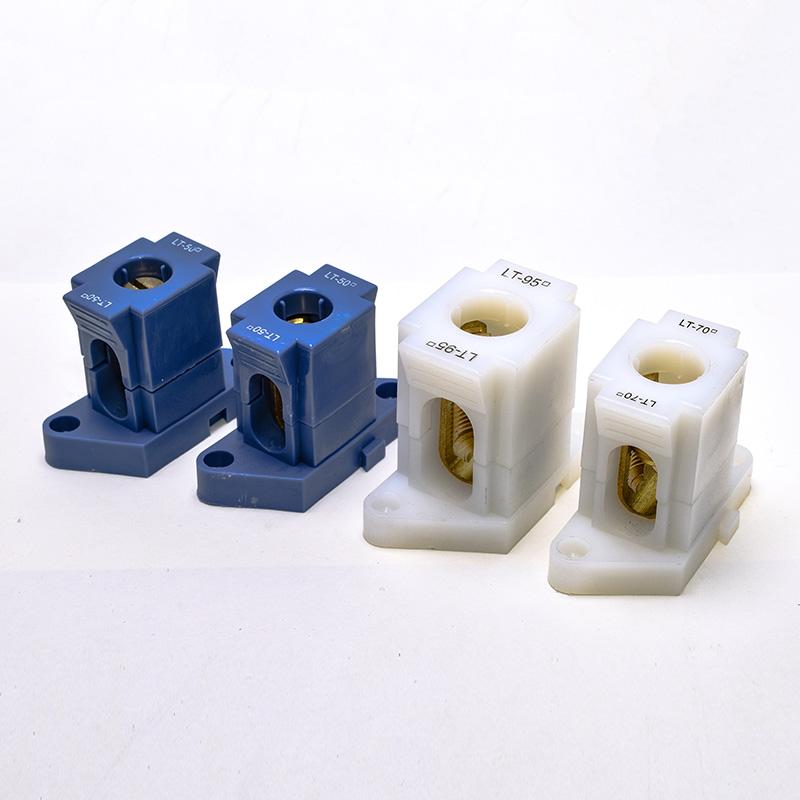

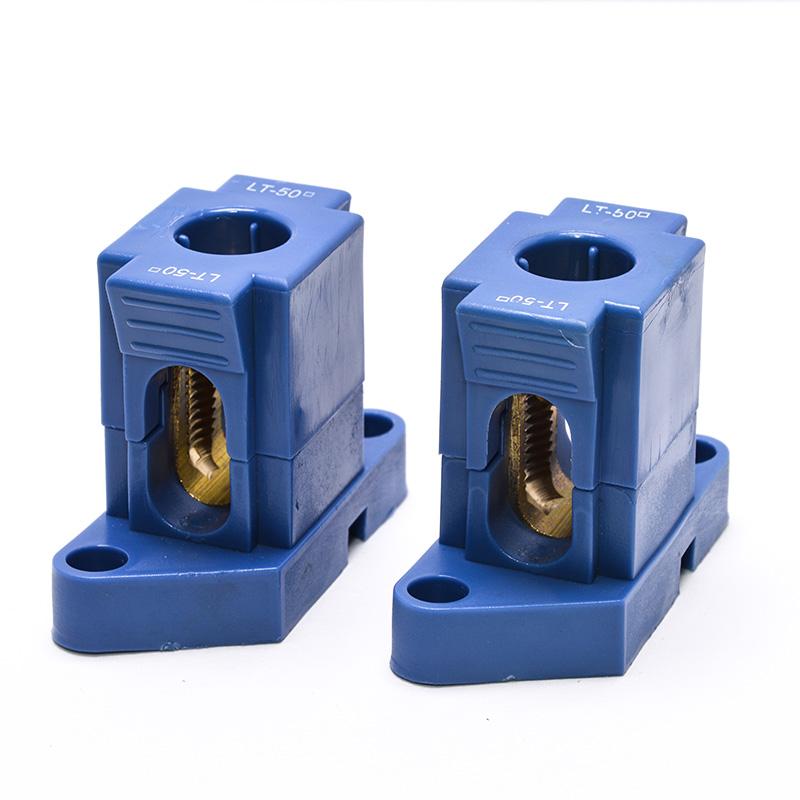

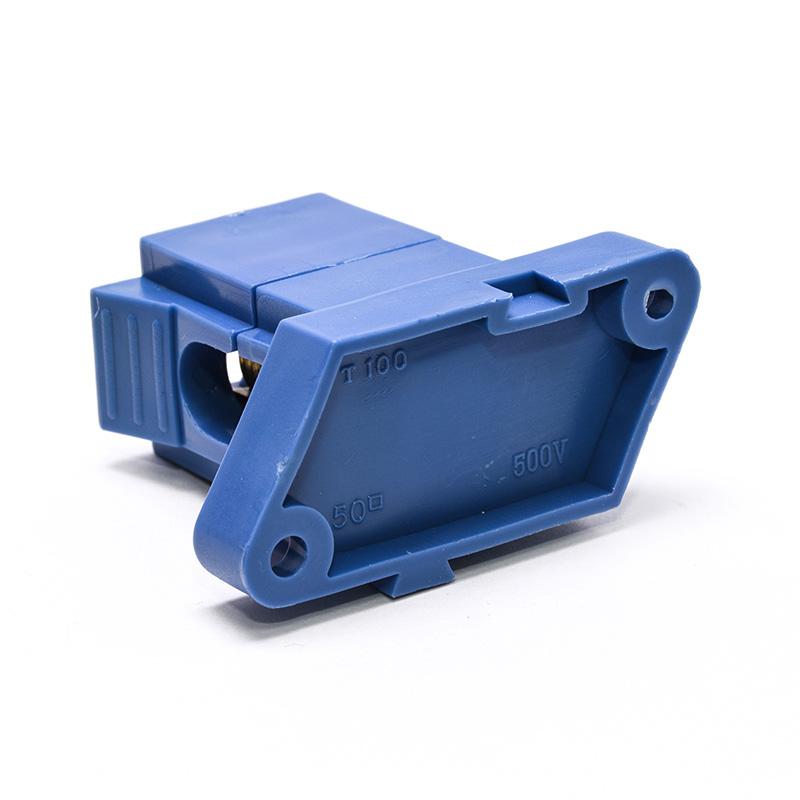

Junction Connectors Terminal Thread Block are designed for connecting one or multiple conductors without cutting the main cable. These terminal strips feature an outer shell made of PA66, known for its durability and insulation properties. The conductors and screws are made of brass, with the screws brass-plated to enhance corrosion resistance and conductivity.



 ItemNo

 MJTB026

 Contact Material

 Brass

 Termination Method

 Screw Down

 Working Temperature

 -40℃ - 110℃

 Material

 Polyamide66

 Inserts

 Brass

 Housing

 Polyamide66(PA66)

 Screws

 Brass,Brass Plated

Advantages of Junction Connectors Terminal Thread Block



1. Durable Shell: Outer shell made of PA66, offering excellent durability and insulation.

2. Brass Conductors: High-quality brass conductors ensure reliable electrical connections.

3. Brass-Plated Screws: Brass screws plated with brass for improved corrosion resistance and conductivity.

4. Efficient Connection: Designed to connect one or multiple conductors without cutting the main cable.

5. Easy Installation: Simple to use, facilitating quick and secure connections.





 Junction Connectors Terminal Thread Block General Specifications

 Junction Connectors Terminal Thread Block

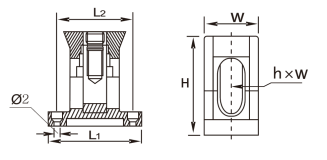

ItemNo. WireRange Volt L1 L2 W H h x w Ø2 Screw Size PCS/CTN
mm
MJTB026-01 16mm² 380V 41 31.5 17 32 14.5×4.8 4.3 M8 1000
MJTB026-02 25mm² 380V 47.2 37.5 20.8 37.7 17×6.8 4.3 M10 600
MJTB026-03 35mm² 380V 54.8 44.5 24.4 42.4 19×8.4 4.3 M12 500
MJTB026-04 50mm² 380V 65 54 27 48.5 22×9.3 5 M14 300
MJTB026-05 70mm² 380V 66.8 56 29 52.5 25×10.5 5 M16 200
MJTB026-06 95mm² 380V 71 60 33.5 56.7 29×12.6 5 M18 160
MJTB026-07 120mm² 380V 73.4 62 35.8 61 33×13.8 5 M20 120
  • #junction connectors terminal thread strips

  • #junction connectors terminal  strips

  • #connectors terminal  strips


-

Application of Junction Connectors Terminal Thread Block

Junction Connectors Terminal Thread Block are versatile and suitable for a wide range of applications, Electrical Wiring,Lighting Systems,Home Appliances,Automotive Wiring,Renewable Energy Systems,Industrial Equipment,Power Distribution,Control Panels;These plastic junction connectors terminal thread strips offer a dependable solution for various wiring applications, ensuring safety, durability, and ease of use.
